Catalog BENZA INDUSTRIAL – YANMAR.pdf
Generatoare de curent industriale 9 – 40 KVA, motorizare YANMAR – monofazate |
||||||
| Model | BY-9-M | BY-14-M | BY-20-M | BY-30-M | BY-40-M | |
| Putere continua | 8,3 KVA 6,6 KW |
13 KVA 10,4 KW |
17,5 KVA 14 KW |
25 KVA 20 KW |
33,8 KVA 27 KW |
|
| Tip motor | 3TNV76 | 3TNV88 | 4TNV88 | 4TNV98 | 4TNV98T | |
| Nr. cilindri | 3L | 3L | 4L | 4L | 4L | |
| Aspiratie | natural | natural | natural | natural | turbo | |
| Dimensiuni (mm) |

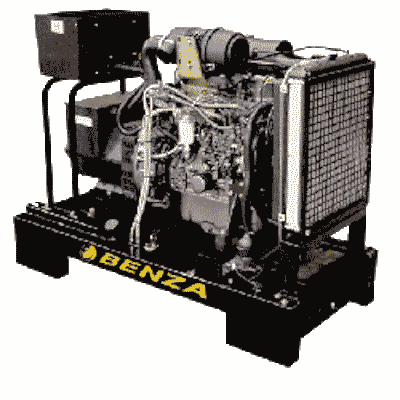

Standard | 1320 x 604 x 1130 |
1320 x 604 x 1130 |
1460 x 604 x 1280 |
1623 x 750 x 1265 |
1623 x 750 x 1312 |
| Greutate | 307kg | 362kg | 397kg | 545kg | 626kg | |
| Rezervor | 65L | 65L | 72L | 115L | 115L | |
| Dimensiuni (mm) |

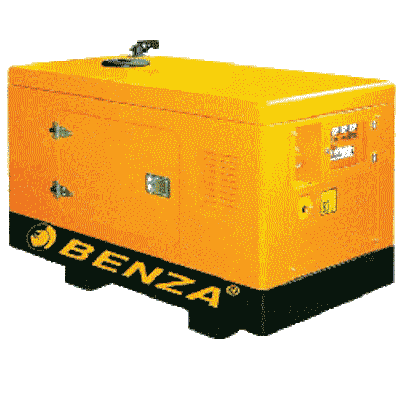

Insonorizat | 1475 x 750 x 1110 |
1475 x 750 x 1110 |
1920 x 900 x 1230 |
2000 x 950 x 1270 |
2250 x 1050 x 1450 |
| Greutate | 611kg | 666kg | 701kg | 905kg | 1081kg | |
| Rezervor | 23 L | 23 L | 38 L | 60 L | 65 L | |
| Nivel zgomot db(A) |
89 | 84 | 85 | 82 | 88 | |
Generatoare de curent industriale 9 – 44 KVA, motorizare YANMAR – trifazate |
|||||||
| Model | BY-9-T | BY-14-T | BY-18-T | BY-22-T | BY-35-T | BY-44-T | |
| Putere continua | 7.8 kva 6.2 kW |
12.3 kva 9.8 kW |
16 kva 12.8 kW |
20 kva 16 kW |
31 kva 25 kW |
41 kva 33 kW |
|
| Tip motor | 3TNV76 | 3TNV88 | 4TNV88 | 4TNV84T | 4TNV98 | 4TNV98T | |
| Nr. cilindri | 3L | 3L | 4L | 4L | 4L | 4L | |
| Aspiratie | natural | natural | natural | turbo | natural | turbo | |
| Dimensiuni (mm) |
Standard | 1320 x 604 x 1130 |
1320 x 604 x 1130 |
1460 x 604 x 1280 |
1460 x 604 x 1280 |
1623 x 750 x 1265 |
1623 x 750 x 1265 |
| Greutate | 307kg | 362kg | 397kg | 416kg | 545kg | 626kg | |
| Rezervor | 65L | 65L | 72L | 72L | 115L | 115L | |
| Dimensiuni (mm) |
Insonorizat | 1475 x 750 x 1110 |
1475 x 750 x 1110 |
1920 x 900 x 1230 |
1920 x 900 x 1230 |
2000 x 950 x 1270 |
2250 x 1050 x 1450 |
| Greutate | 611 kg | 666 kg | 701 kg | 720 kg | 905 kg | 1081 kg | |
| Rezervor | 23 L | 23 L | 38 L | 38 L | 60 L | 65 L | |
| Nivel zgomot db(A) |
89 | 84 | 85 | 82 | 88 | 87 | |
